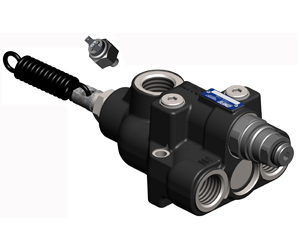

SERIES 200+CARTRIDGE VALVE

End of stroke valve developed for trailers and semitrailers applications; the built-in Max Pressure Valve “cartrdige” type, when used in two-pipes circuits, allows to protect the cylinder from pressure peaks. The innovative and compact design makes the fitting easier and cost effective. - Mechanical runstop valve. - Flow up to 200 l/min. - Cast iron body resistant to pressure up to 400 bar. - Galvanized body and Nickel spool. - Pressure switch option. - High-resistance anti-shock spring.
