PNEUMATIC PILOT

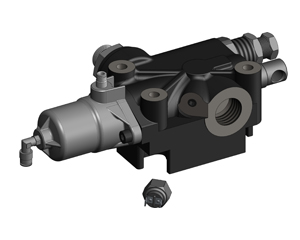

Proportional pneumatic tipping valve suitable for large oil flow applications especially designed for heavy duty tipper bodies, off-road trucks and semi-trailers. Operated by N-FORCE. Open center hydraulic scheme according to CE standards. - Built in check and adjustable relief valves (pilot type). - Nodular cast iron body for pressure up to 400 bar. - Either Chassis or tank mounting options. - Mechanical Direct End-of-stroke with anti-shock spring. - Ready for pressure signal switch mounting. - Galvanized body and nickel spool. - Guaranteed for oil temperature range -25 a 80°C, viscosity range 12 a 100 cSt and oil filtering 25 µm
