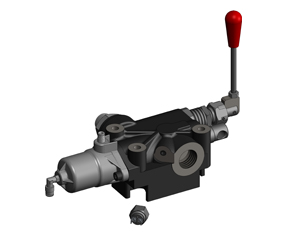

Proportional pneumatic tipping valve suitable for large oil flow applications especially designed for heavy-duty tipper bodies and semi-trailers with two different working pressures which can be selected manually. Operated by N-FORCE. Open center hydraulic scheme according to CE standards.- Built-in check valve and 3 pressure adjustable relief valve (pilot type)- Nodular cast-iron body for pressure up to 400 bar- Either Chassis or tank mounting options.- Mechanical direct end-of-stroke with anti-shock spring.- Ready for pressure signal switch mounting.- Galvanized body and nickell spool.- Guaranteed for oil temperature range -25 a 80 °C viscosity range 12 a 100 xSt and oil filtering 25 µm



  • MODULAR 200
  • MODULAR 250


  • 200
  • 250
