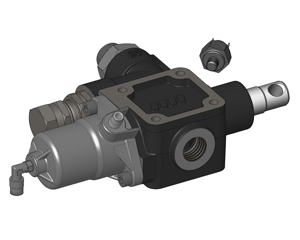

Proportional pneumatic tipping valve to suit medium-heavy duty tipper trucks. Operated by N-FORCE. Open center hydraulic scheme according to CE standards.- Built-in check and adjustable relief valves (direct type).- Nodular cast-iron body for pressure up to 400 bar.- Either Chassis or tank (DSP kit) mounting options.- Mechanical Direct End-of-stroke with anti-shock spring.- Ready for pressure signal switch mounting.- Galvanized body and nickel spool.- Guaranteed for oil temperature range -25 a 80 °C, viscosity range 12 a 100 cSt and oil filtering 25 µm.
